Footprint

Top-down outline drawn to scale from factory dimensions. Compare footprints side by side on the compare page.

SS-120-3A · Plug-and-Play

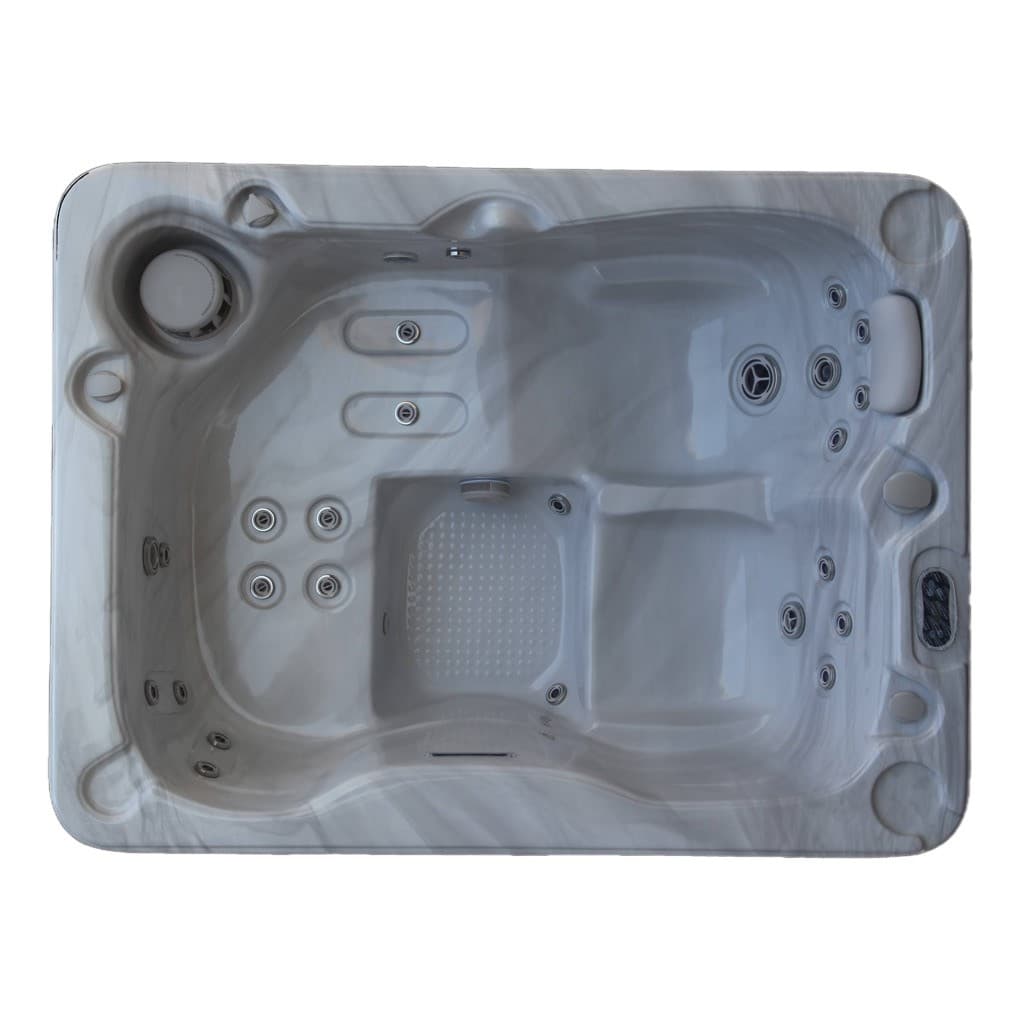

3-Person Spa (Plug-and-Play)

In stock

Dimensions (L × W × H): 79″ × 59″ × 29″
Dry weight: 529 lbs
Water capacity: 225 gal
Jets: 25
Voltage: 120V/240V hybrid
Circuit: 15 amp
Total watts: 4,500
Pump: 2 HP
Heater: 2 kW titanium
Controls: Balboa Control System
Seating: 3 person

Spec sheet (print)Image pack (7)

Installation planning

Electrical. Plugs into a standard 120V / 15A GFCI outlet — no electrician required. Convertible to a 240V connection for stronger jet output and faster heating.
Pad. Level, reinforced surface at least 59″ × 79″, with 18–24″ of service clearance on the equipment side.
Weight. 529 lbs dry, roughly 2,950 lbs filled and occupied (estimate).
Delivery. Ships curbside LTL on a pallet. Freight quoted with dealer pricing on request.

No retail pricing is shown on this catalog. Submit a request sheet for dealer pricing, freight, and availability.

Overview

3-person capacity, 79 by 59 inch footprint, 120V/240V hybrid. Ships with 2 kW titanium heater, Balboa controls, ozone sanitation, LED lighting. Runs on a standard 120V outlet with no electrician required, and converts to 240V for stronger jet output. The low-barrier option for first-time spa buyers. UV-rated cover and steps included.
