Footprint

Top-down outline drawn to scale from factory dimensions. Compare footprints side by side on the compare page.

SS-240-3E

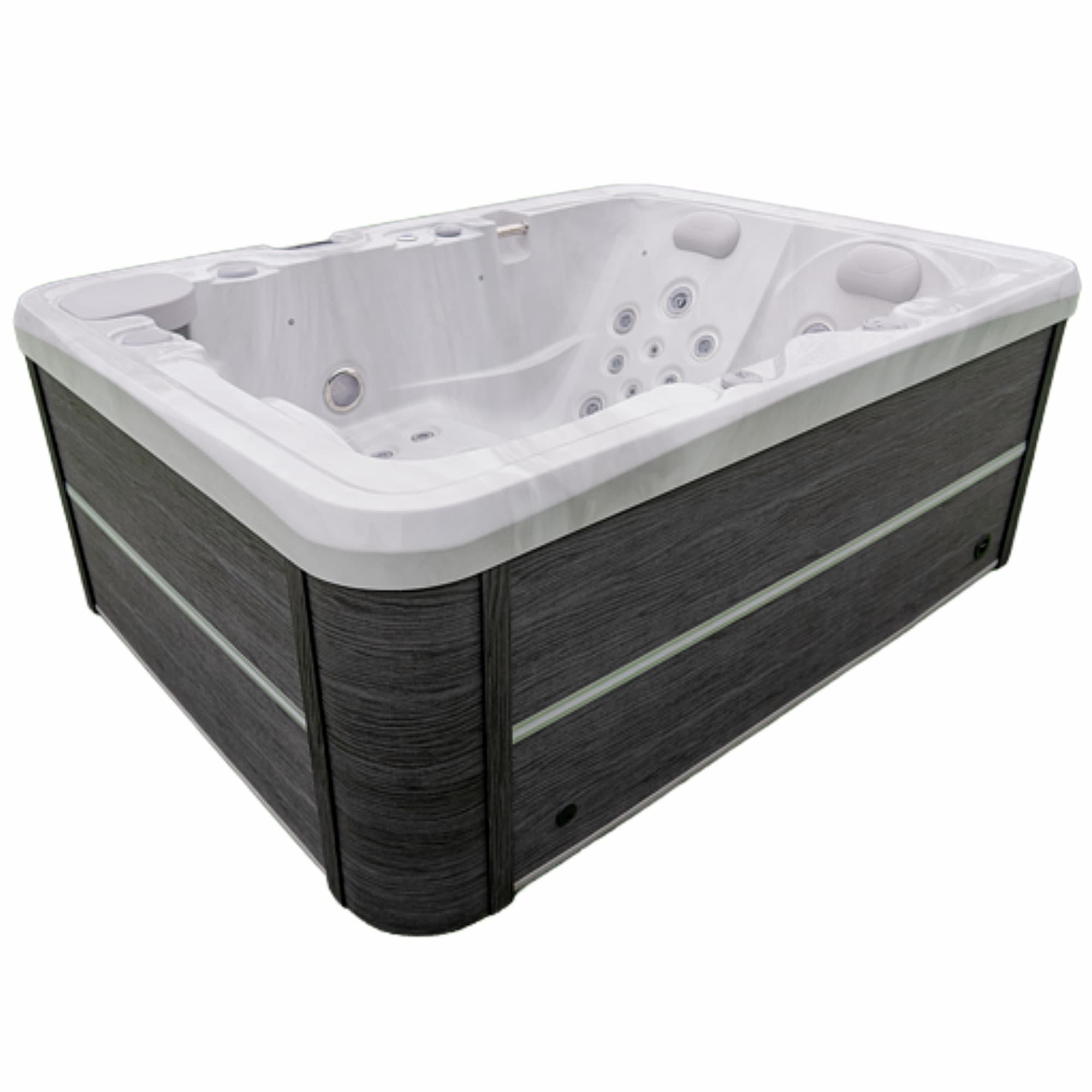

3-Person Spa

In stock

Dimensions (L × W × H): 86″ × 62″ × 34″
Dry weight: 572 lbs
Water capacity: 374 gal
Jets: 29
Voltage: 240V
Circuit: 50 amp
Total watts: 7,350
Pump: 3 HP
Heater: 5.5 kW titanium
Controls: Balboa Control System
Seating: 3 person

Spec sheet (print)Image pack (7)

Installation planning

Electrical. Requires a dedicated 50A 240V GFCI circuit, installed by a licensed electrician.
Pad. Level, reinforced surface at least 62″ × 86″, with 18–24″ of service clearance on the equipment side.
Weight. 572 lbs dry, roughly 4,250 lbs filled and occupied (estimate).
Delivery. Ships curbside LTL on a pallet. Freight quoted with dealer pricing on request.

No retail pricing is shown on this catalog. Submit a request sheet for dealer pricing, freight, and availability.

Overview

3-person capacity, 86 by 62 inch footprint, 29 jets, 240V. Ships with Balboa controls, ozone sanitation, LED lighting. Mid-size format that fits most patios and deck placements on a dedicated 240V circuit. UV-rated cover and steps included.
