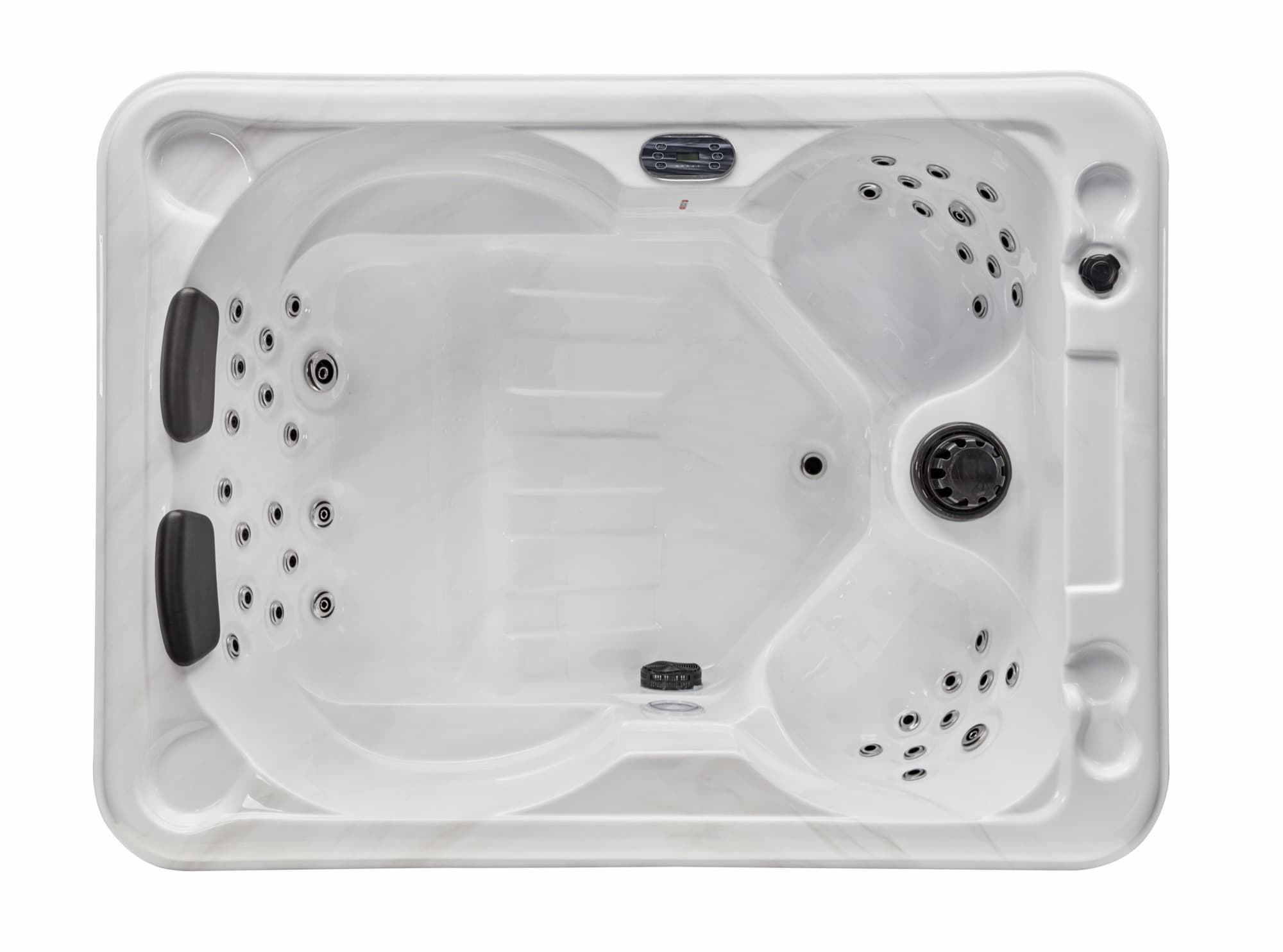

SS-240-4A
4-Person Spa
79″ × 59″ × 32″ · 39 jets · 240V
In stock
Footprint
Top-down outline drawn to scale from factory dimensions. Compare footprints side by side on the compare page.

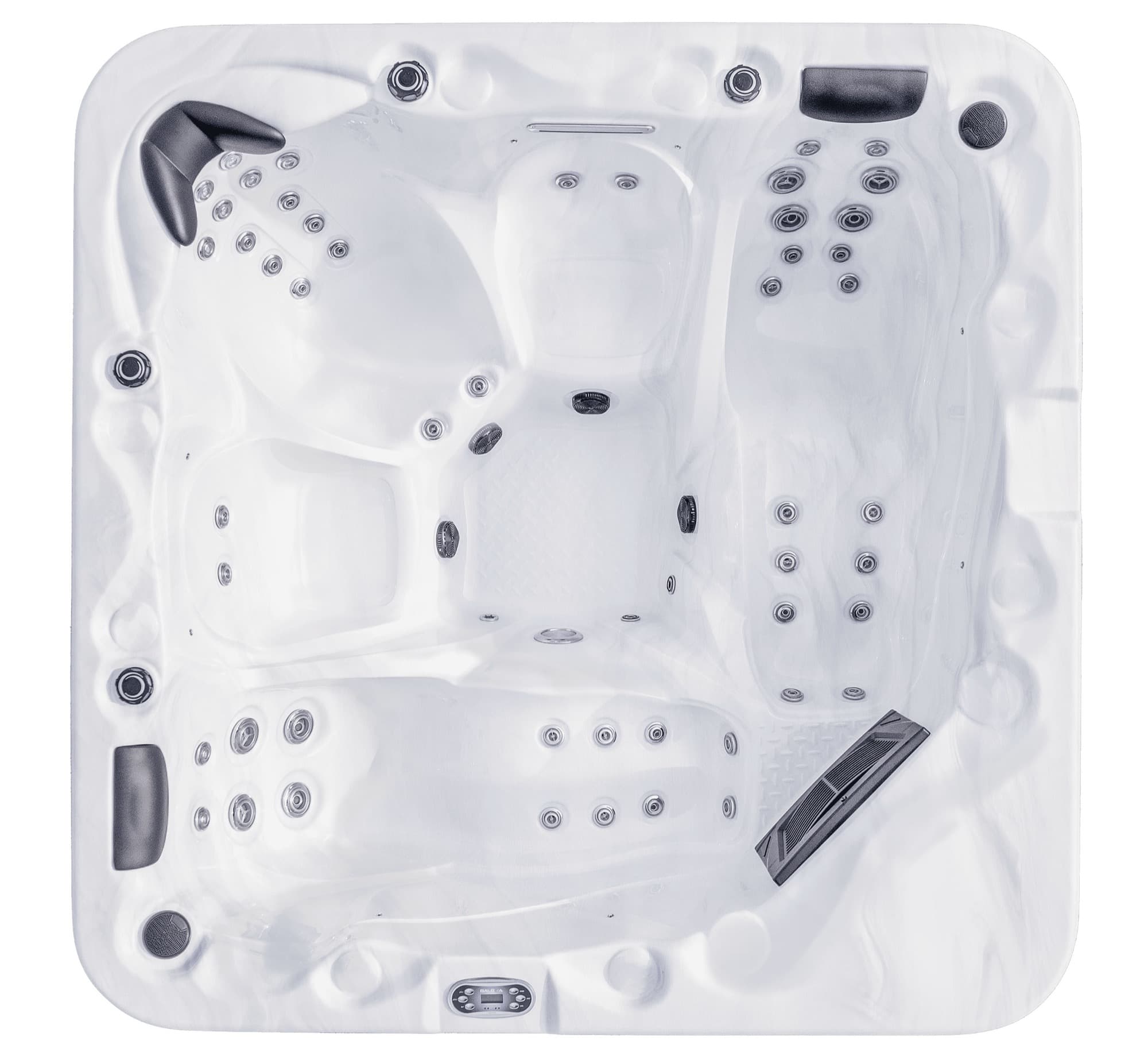

SS-240-5B
5-Person Spa
In stock
- Dimensions (L × W × H)
- 83″ × 83″ × 35″
- Dry weight
- 850 lbs
- Water capacity
- 396 gal
- Jets
- 54
- Voltage
- 240V
- Circuit
- 50 amp
- Total watts
- 10,230
- Pump
- 3 HP
- Heater
- 5.5 kW titanium
- Controls
- Balboa control system
- Seating
- 5 person
Installation planning
- Electrical. Requires a dedicated 50A 240V GFCI circuit, installed by a licensed electrician.
- Pad. Level, reinforced surface at least 83″ × 83″, with 18–24″ of service clearance on the equipment side.
- Weight. 850 lbs dry, roughly 5,100 lbs filled and occupied (estimate).
- Delivery. Ships curbside LTL on a pallet. Freight quoted with dealer pricing on request.
No retail pricing is shown on this catalog. Submit a request sheet for dealer pricing, freight, and availability.
Overview
5-person capacity, 83 by 83 inch footprint, 54 jets, 240V. Ships with 3 HP pump, 5.5 kW titanium heater, Balboa controls, ozone sanitation, waterfall feature, LED lighting. Large-size format that fits most patios and deck placements on a dedicated 240V circuit. UV-rated cover and steps included.
Equipment
- 2 Ultra Comfortable Lounge Seats
- 54 Powerful Massage Jets
- (2) 3HP Pumps
- Dedicated Circulation Pump
- 3 Cushioned Neck Pillows
- Color Changing LED Lighting and LED Waterfall
- Premium Waterproof Bluetooth Sound System
- Balboa Operating System
- 5.5kW Titanium Heater
- Ozone Cleaning System
- Advanced Water Filtration System
- No-Rot Polystyrene Skirt
- UV Rated Insulated Cover and Steps Included
